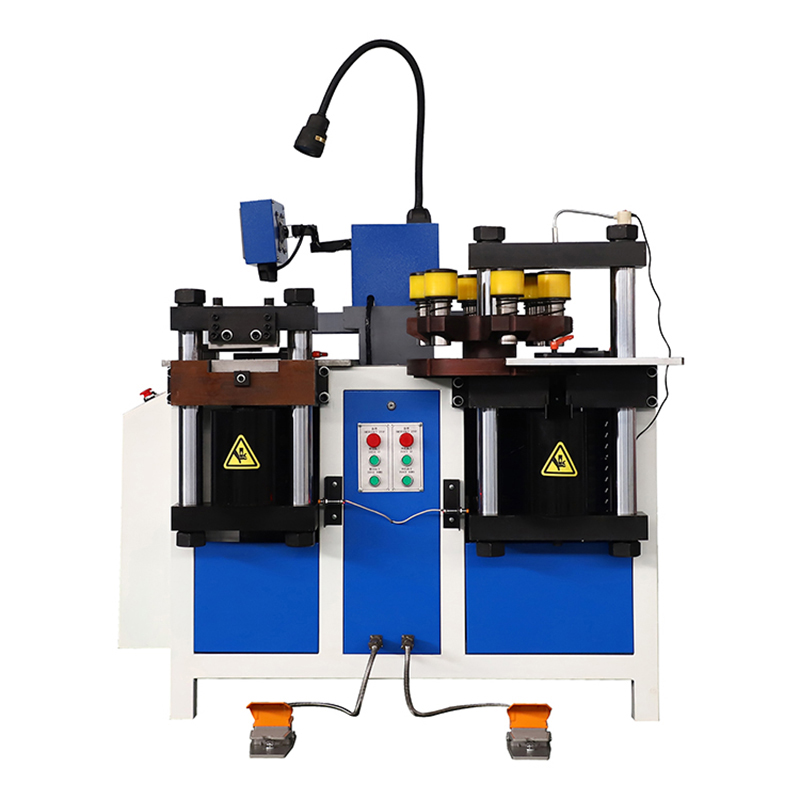

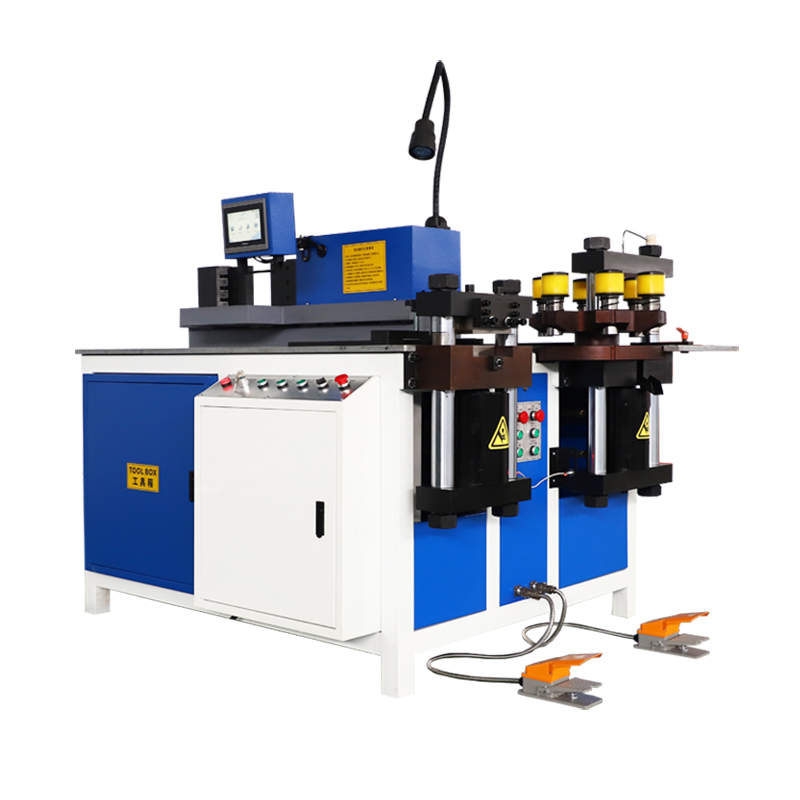

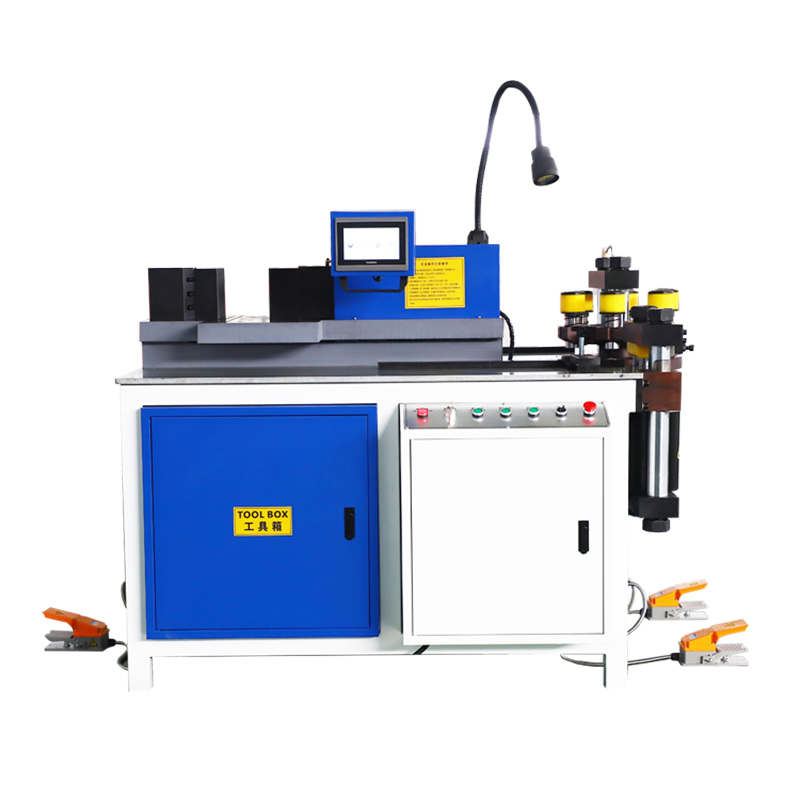

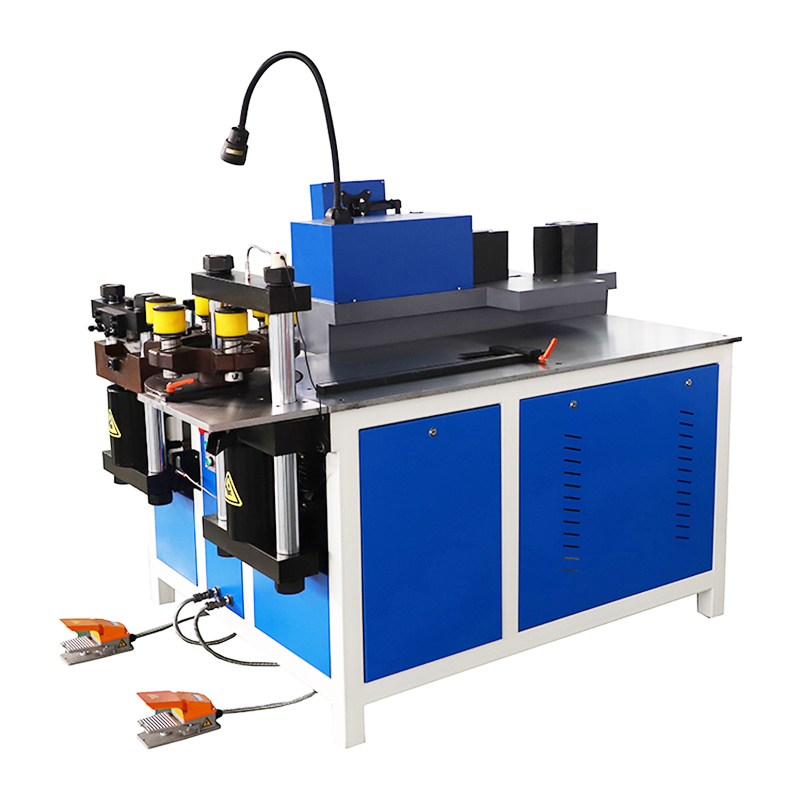

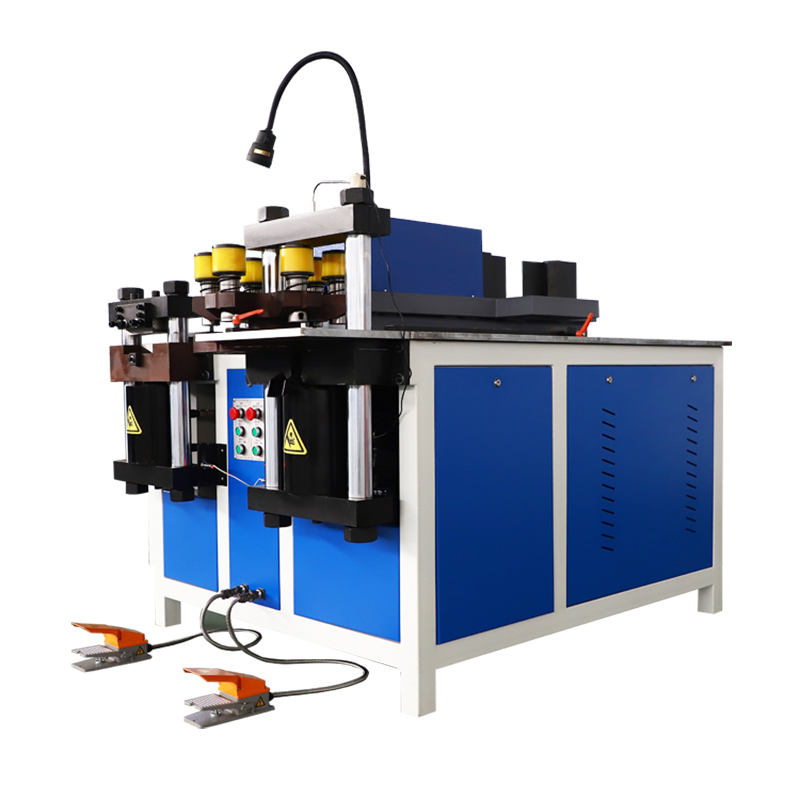

Open-type 303 Busbar Processing Machine

The Open-type 303 busbar processing machine (also known as the KSSK-303) is a compact, entry-level 3-in-1 busbar machine designed for small to medium-scale busbar fabrication workshops. As part of our three-station busbar machine family, it features an open-frame design that offers exceptional flexibility and ease of use, unlike traditional enclosed models. It integrates punching, shearing, and bending functions into one unit, making it ideal for processing copper and aluminum busbars up to 160×16mm.

Unlike standard three-station busbar machines, the KSSK-303 is optimized for smaller production volumes and tighter workshop spaces. It is the perfect choice for low-voltage switchgear manufacturers, transformer workshops, and power distribution equipment producers seeking a cost-effective, reliable solution for their daily busbar processing needs.

Key Features

✅ Open-Frame Design for Easy Operation

The open structure allows quick loading and unloading of long busbars, eliminating the limitations of enclosed models. Operators can access the work area from multiple angles, reducing handling time and improving workflow efficiency. This makes the machine particularly user-friendly for small-scale production environments.

✅ 3-in-1 Integrated Functions

Combines three core busbar processing operations in one compact footprint:

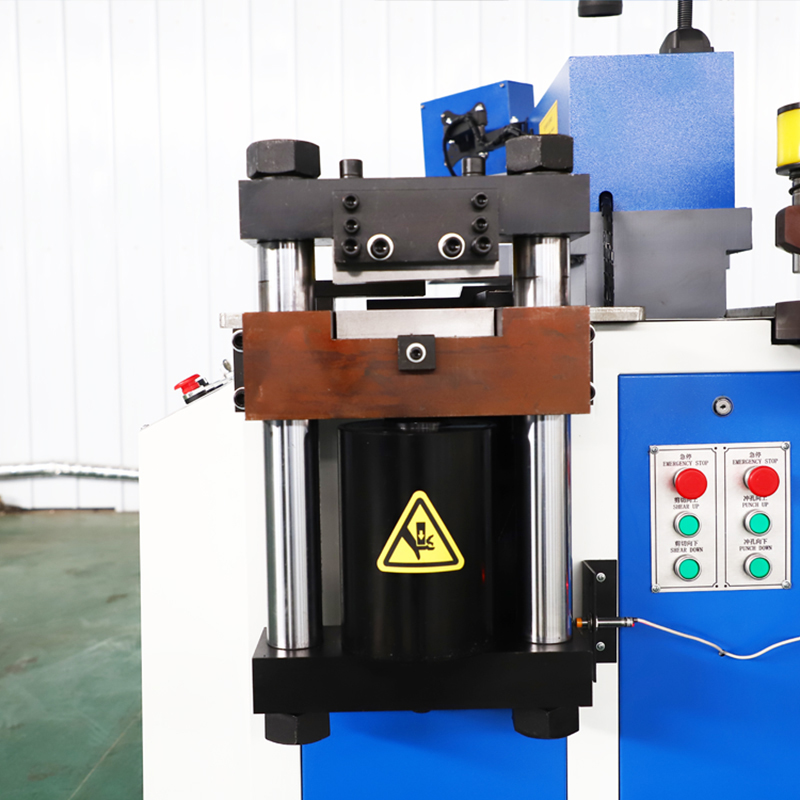

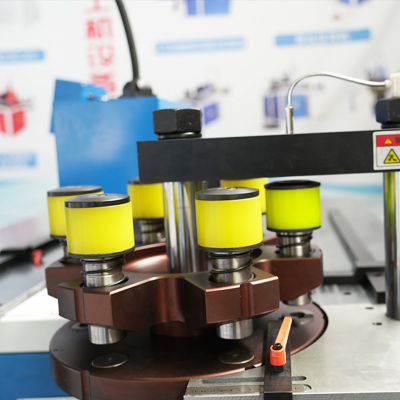

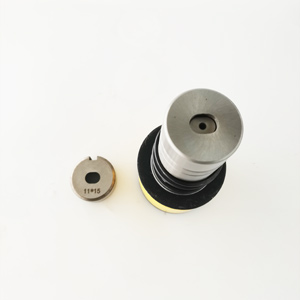

• Punching: Clean, precise holes for reliable electrical connections

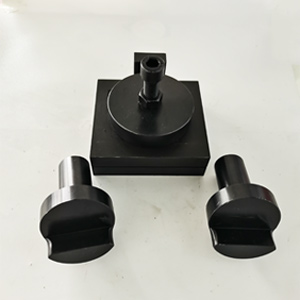

• Shearing: Straight, burr-free cuts for accurate busbar lengths

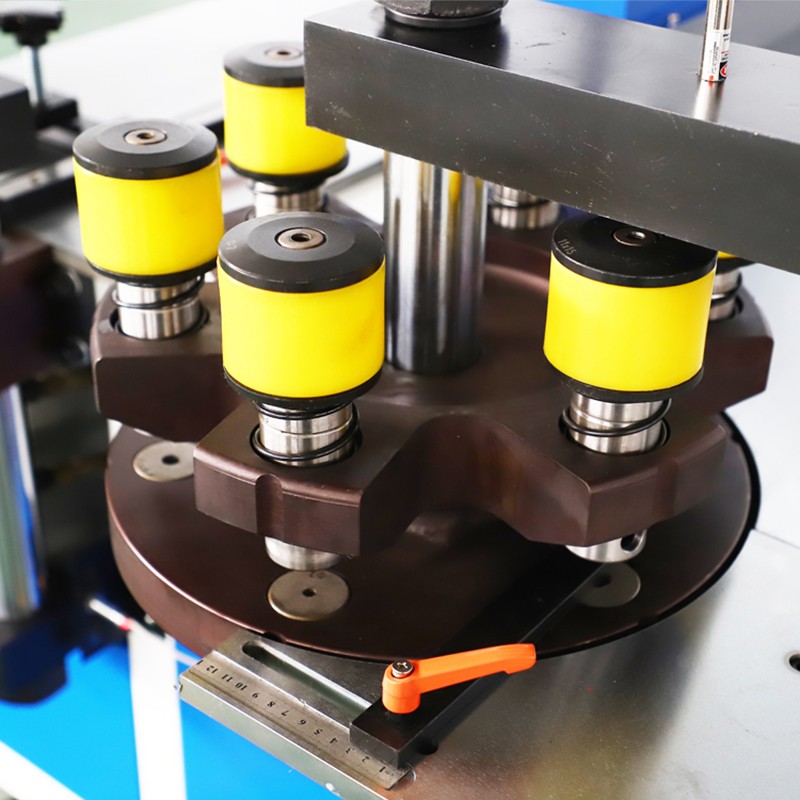

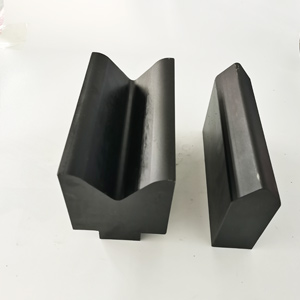

• Bending: Smooth, repeatable bends for custom busbar profiles

✅ Optimized for 160×16mm Busbars

Specifically calibrated for processing copper and aluminum busbars within the 160×16mm range, the machine ensures consistent quality and dimensional accuracy for small to medium-sized busbar applications. It is widely used in the production of switchgear components, transformer windings, and other electrical equipment parts.

✅ Compact & Space-Saving

Designed for small workshops with limited floor space, the KSSK-303 eliminates the need for three separate machines. This saves valuable workspace while maintaining full functionality, making it ideal for growing businesses or limited production facilities.

✅ Cost-Effective Entry-Level Solution

Offers all the essential features of a three-station busbar machine at a more accessible price point. It is perfect for new businesses or those looking to expand their busbar processing capabilities without a large initial investment.

✅ Reliable Hydraulic Performance

Equipped with a stable hydraulic system that delivers consistent power and precision, ensuring every punch, cut, and bend meets the required specifications for electrical safety and performance. The robust design ensures long service life and low maintenance costs.

SpecificationDetails

Max Busbar Size (Copper/Aluminum)Copper: 160 × 16 mm

Aluminum: 160 × 16 mm

Punching Tonnage：35 tons

Shearing CapacityCopper: 160 × 16 mm

Aluminum: 160 × 16 mm

Motor Power3×4=12 kW (hydraulic station)

Machine Dimensions (L × W × H)：1780 × 1400 × 1400 mm

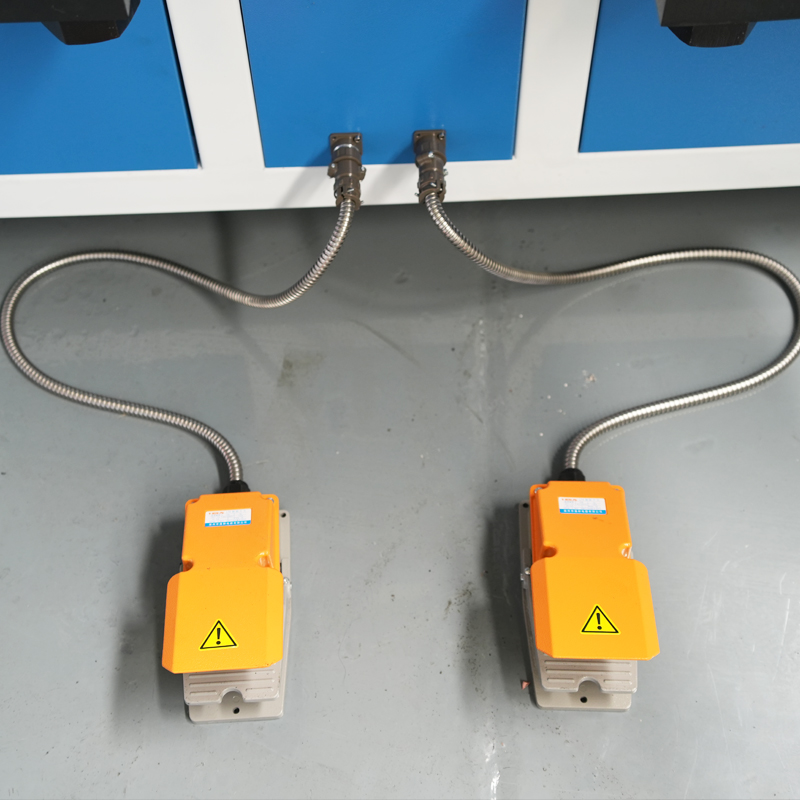

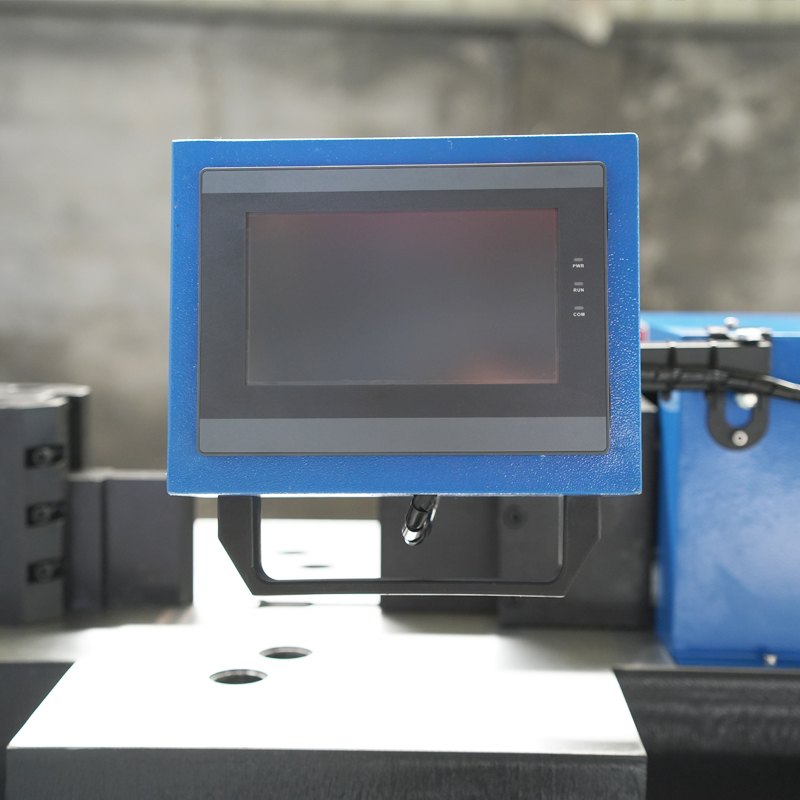

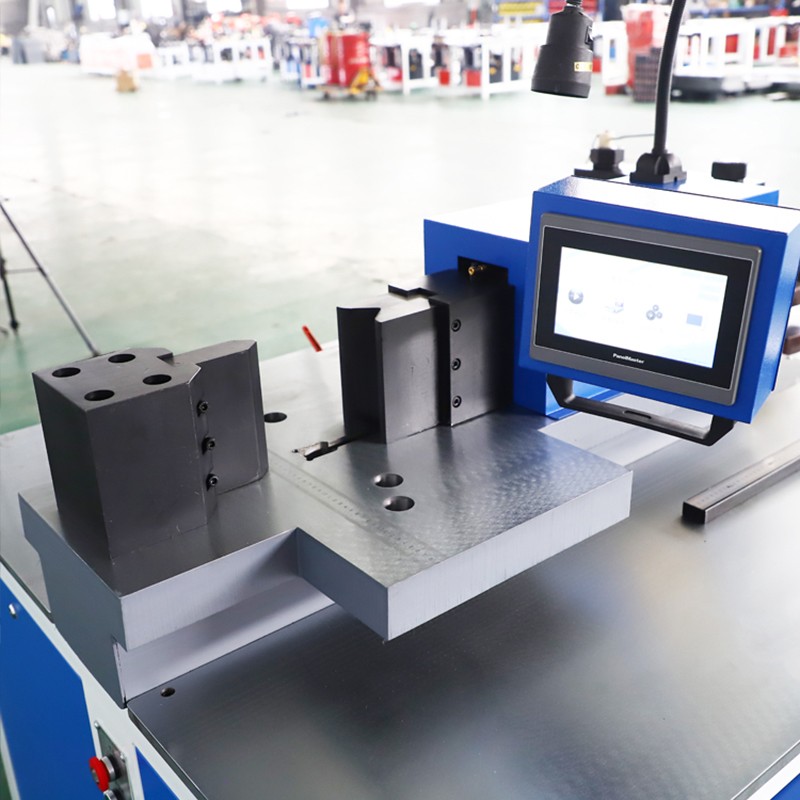

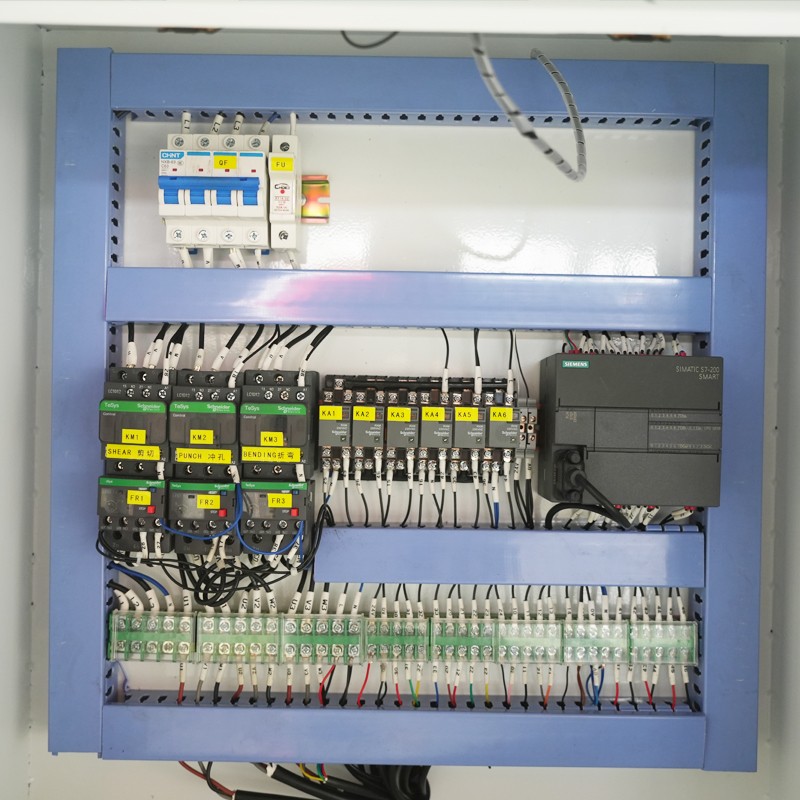

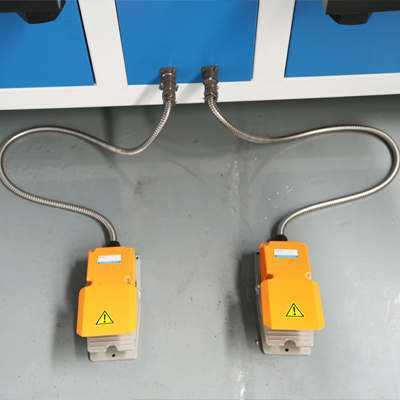

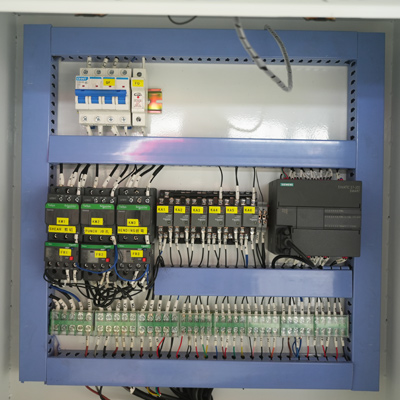

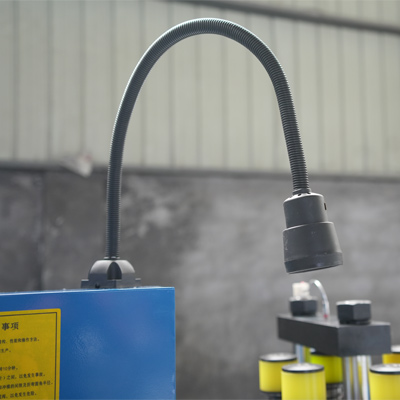

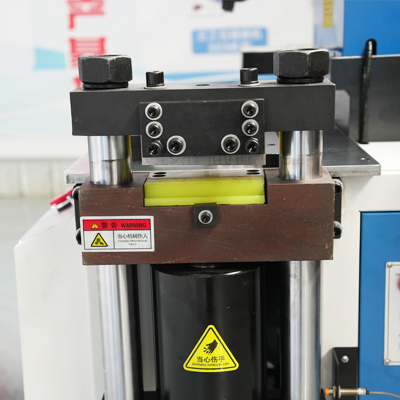

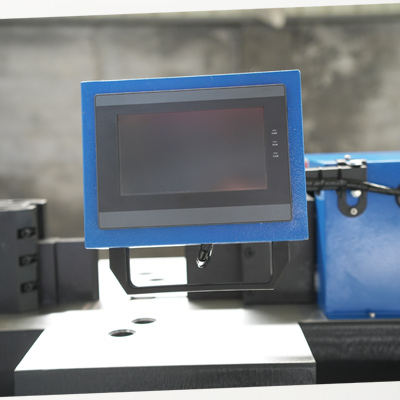

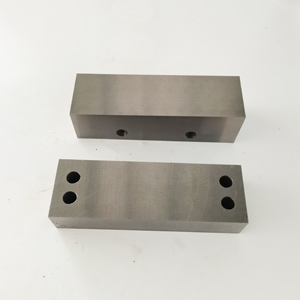

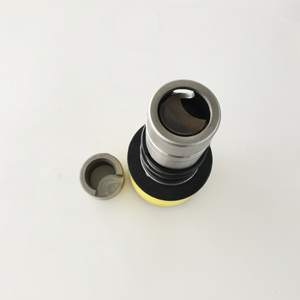

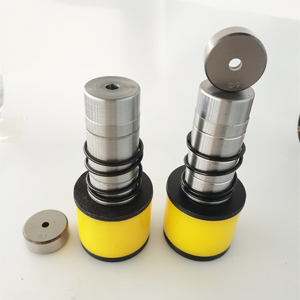

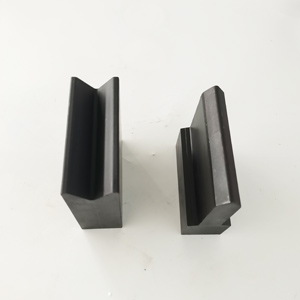

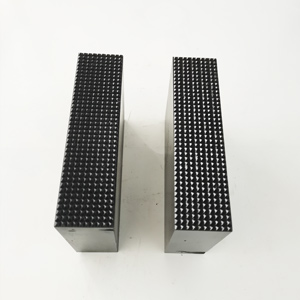

Details of the 303 busbar processing equipment display
