803 Busbar Machine Processing Demo: Shearing, Punching, Bending

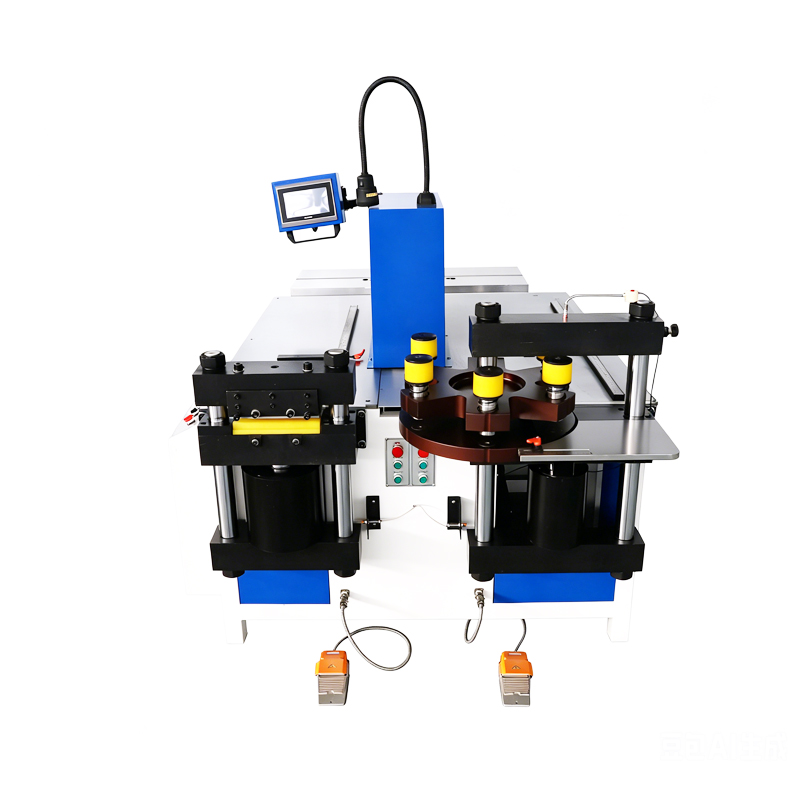

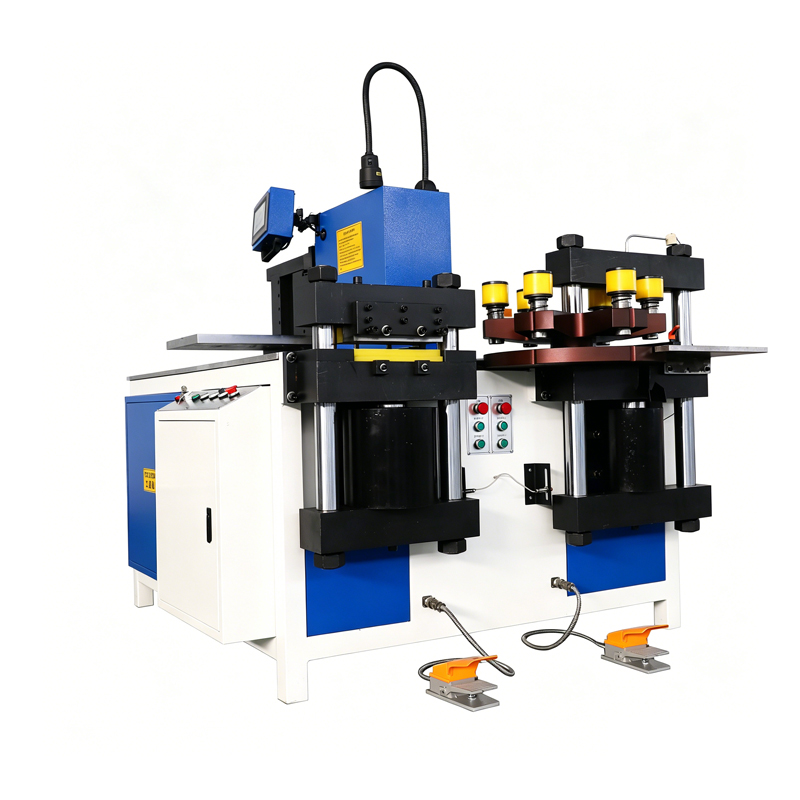

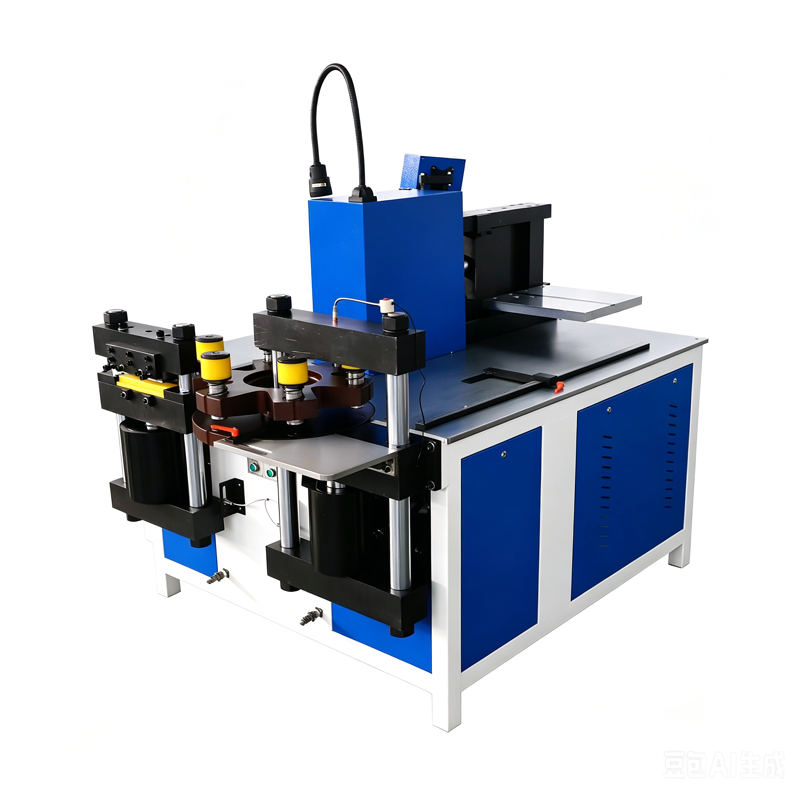

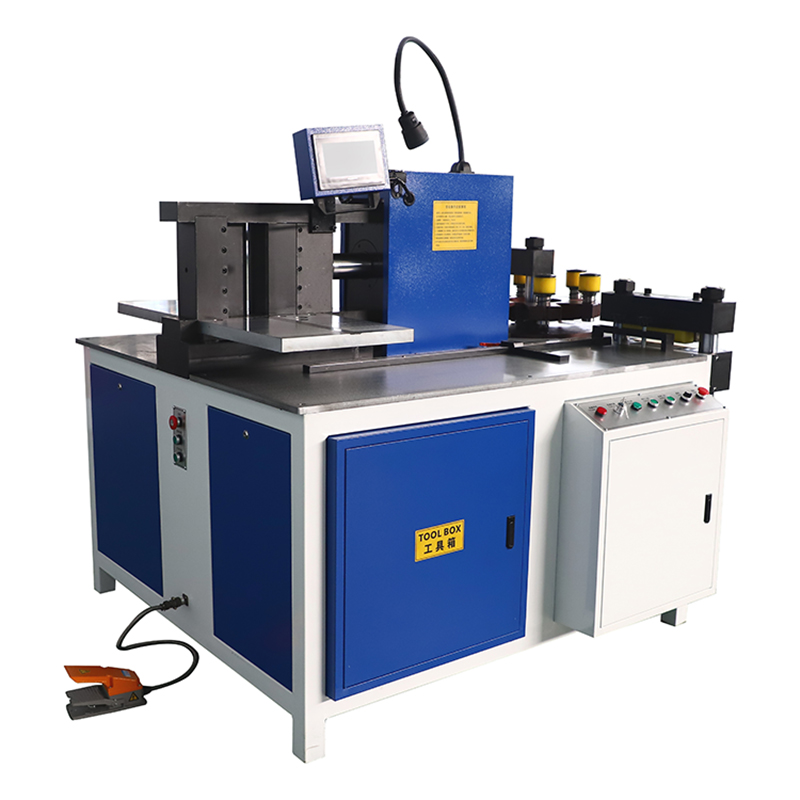

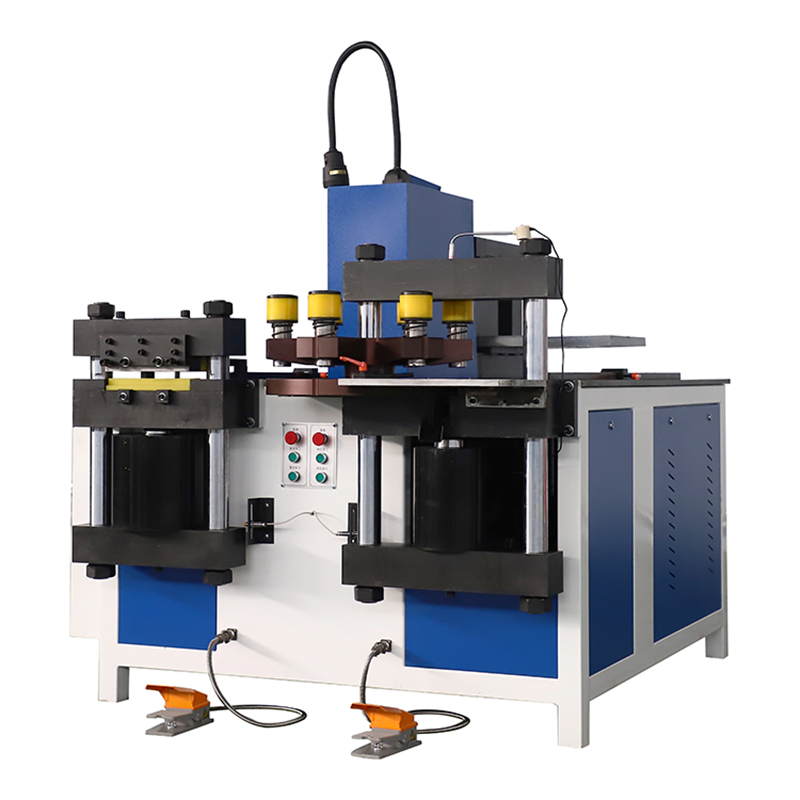

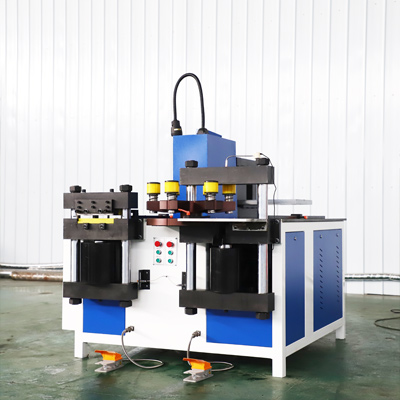

803 Three-Position Busbar Processing Machine

The 803 three-position busbar processing machine is a heavy-duty 3-in-1 busbar machine designed for large-scale, high-volume busbar fabrication. Built for demanding production environments, it combines robust performance, high precision, and versatile functionality to meet the needs of power distribution equipment manufacturers, large switchgear workshops, and transformer production lines.

A standout feature of the 803 model is its powerful hydraulic system, which enables it to handle thicker and wider busbars with ease, making it ideal for industrial-grade busbar processing tasks.

Core Advantages

✅ 3-in-1 Multi-Function Design

Combines punching, shearing, and bending functions in one integrated station:

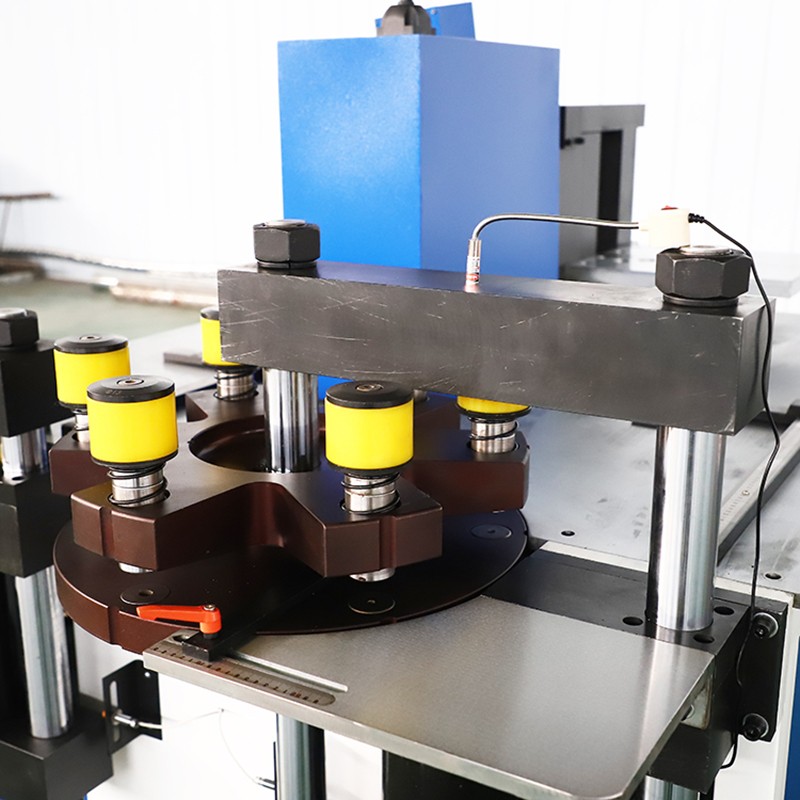

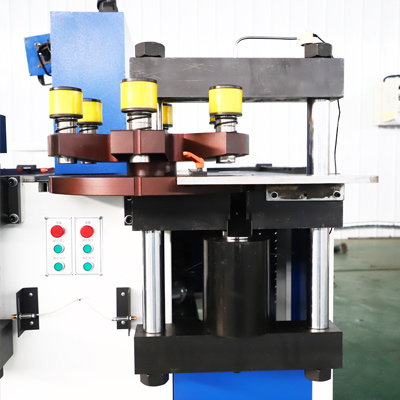

• Punching Station: Drills clean, precise holes in thick copper and aluminum busbars.

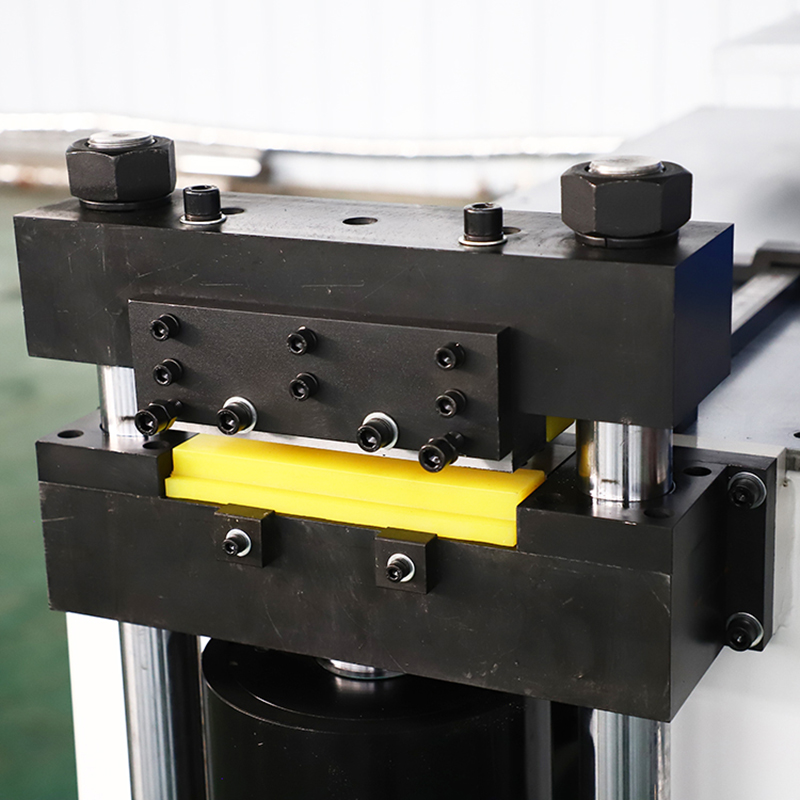

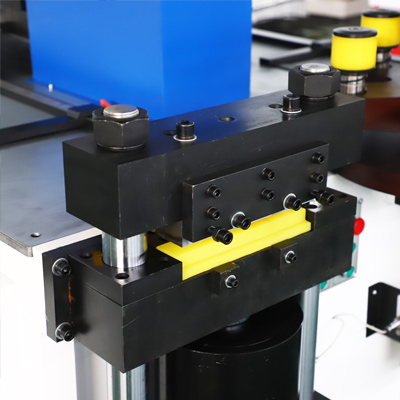

• Shearing Station: Cuts busbars to required lengths with smooth, burr-free cross-sections.

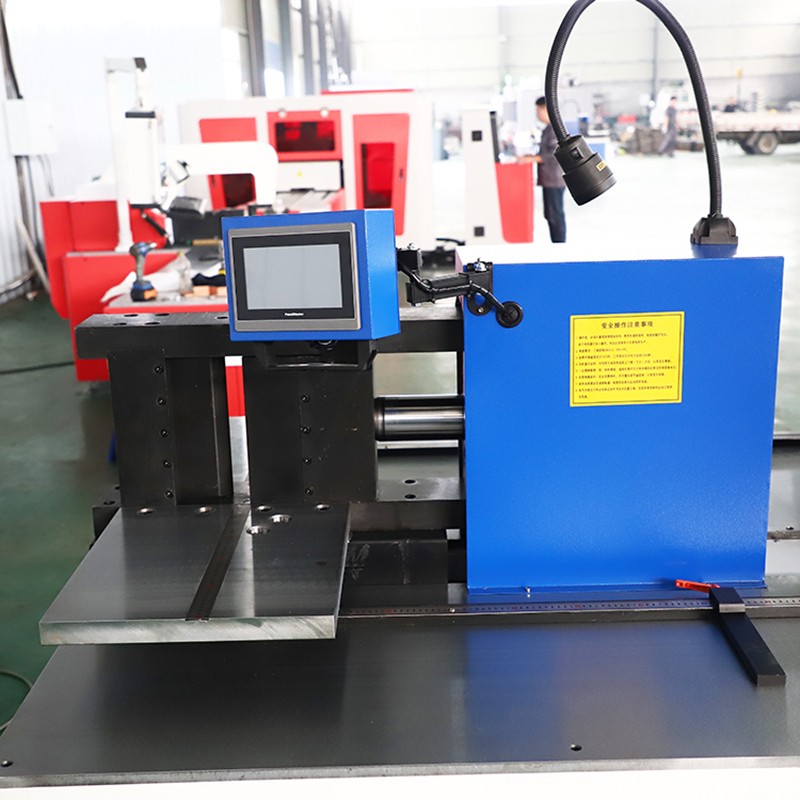

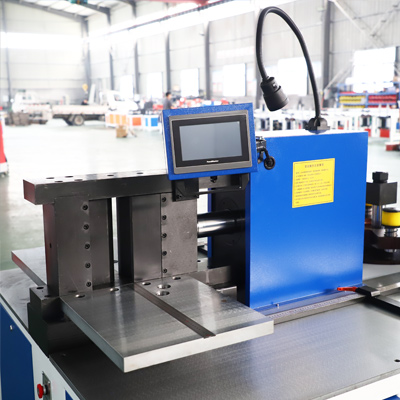

• Bending Station: Forms angles and custom profiles with consistent accuracy.

✅ 800kN Heavy-Duty Hydraulic System

Equipped with an 800kN hydraulic drive, the machine delivers the power needed to handle thick and wide busbars that standard models cannot process. This makes it perfect for heavy-duty applications in power distribution equipment assembly.

✅ High Processing Precision

Offers a bending tolerance of ±1°, ensuring accurate and repeatable results for every workpiece. This level of precision is critical for reliable electrical connections in large-scale power projects.

✅ Wide Compatibility

Works with both copper and aluminum busbars, supporting a wide range of sizes and specifications. It is widely used in the production of low-voltage switchgear, transformer windings, and other high-current electrical components.

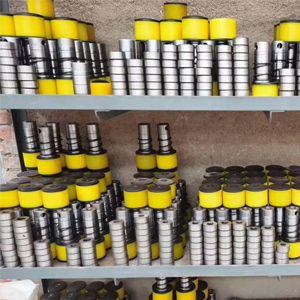

✅ Flexible Mold Options

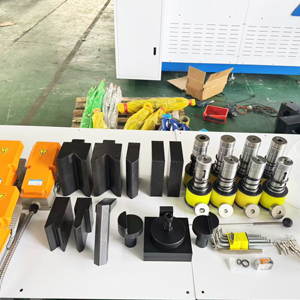

Comes with standard molds included, and custom molds are available to meet specific project requirements. This flexibility allows you to process custom busbar profiles for unique applications.

✅ Safe & Easy Operation

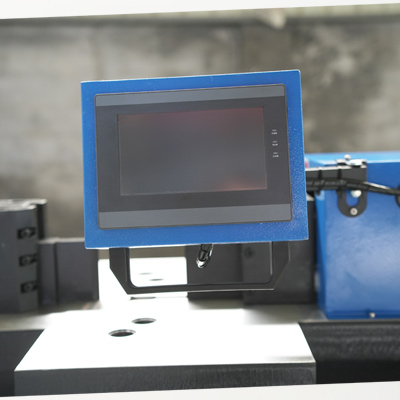

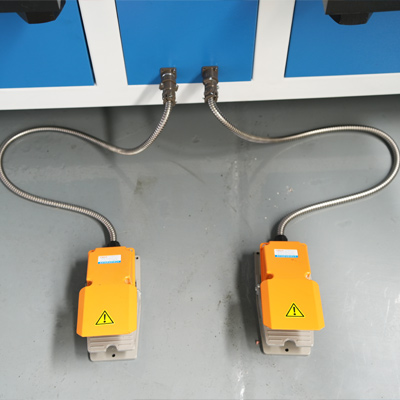

Features intuitive pedal control for safe and efficient processing, reducing operator fatigue and improving workflow. The clear interface minimizes setup time, making it easy to switch between different operations.

✅ Durable Industrial-Grade Build

Constructed with heavy-duty industrial components for long service life and reliable performance. The robust frame minimizes vibration during high-power operations, ensuring stability even under continuous use.
